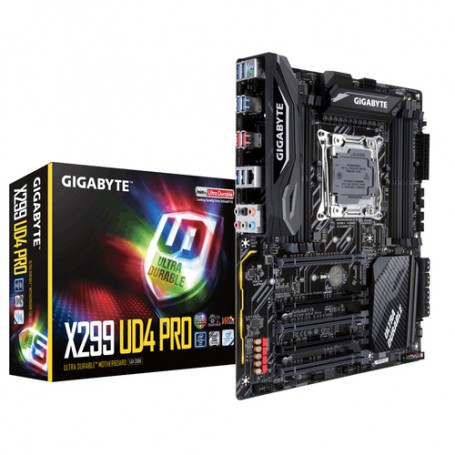

Carte mère Gigabyte X299 DDR4 Intel Xseries Socket 2066

Carte mère Gigabyte X299 DDR4 Intel Xseries Socket 2066

Carte Mère Intel X299 Ultra Durable avec RGB Fusion

  • Pour Processeurs Intel® Core™ X-series
  • DDR4 Quad Channel  8 DIMMs
  • Intel® Optane™ Memory Ready
  • Intel® VROC ready
  • ASMedia 3142 USB 3.1 Gen 2 avec USB Type-A
  • 3-Way Graphics
  • Système d'alimentation de qualité serveur
  • Audio HD ALC1220 120dB SNR avec amplification pour Casques, Condensateurs Audio WIMA
  • RGB FUSION compatible LEDs numériques et Bandes RGBW
  • Smart Fan 5 incluant Capteurs de température et Headers Hybrides pour Ventilateurs avec FAN STOP
  • Dual M.2 avec interface PCIe Gen3 x4
  • U.2 NVMe PCIe Gen3 x4 via adaptateur
  • Réseau Gaming Intel GbE LAN avec cFosSpeed Internet Accelerator
  • Résistance au Souffre
  • Ultra Durable™, Protection LAN contre ESD 25KV et Surcharges 15KV
  • Intel® Thunderbolt™ 3 AIC
  • GIGABYTE UEFI DualBIOS™
  • <span class="upper">Paiement sécurisé</span> par carte bancaire Paiement sécurisé par carte bancaire
  • <span class="upper">Livraison express</span> par Colisimo ou Chronopost Livraison express par Colisimo ou Chronopost
  • <span class="upper">Retour gratuit</span> sous 15 jours Retour gratuit sous 15 jours
5 1
319,00 €
TTC Assemblage 6 jours ouvrés
 En Stock
  • Processeur
    1. Support for Intel® Core™ X series processors in the LGA2066 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® X299 Express Chipset
  • Mémoire
    1. 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
      * Supported when using a 44-lane or 28-lane CPU (6-core or above).
    2. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
      * Supported when using a 16-lane CPU (4-core).
    3. 4 channel memory architecture.
      * Supported when using a 44-lane or 28-lane CPU (6-core or above).
    4. Dual channel memory architecture.
      Supported when using a 16-lane CPU (4-core).
    5. Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
    6. Support for non-ECC Un-buffered DIMM memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Audio
    1. Realtek® ALC1220 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • Réseau
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Port d'expansion
    1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    3. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
      * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.

    When using a 44 lane CPU (10-core or above):
      1-Way 2-Way 3-Way
    PCIEX16_1 ∨(x16) ∨(x16) ∨(x16)
    PCIEX16_2 ∨(x16) ∨(x16)
    PCIEX8 ∨(x8)
    ∨: Installed, ╳: Not Installed.

    When using a 28 lane CPU (6-core or above):
      1-Way 2-Way
    PCIEX16_1 ∨(x16) ∨(x16)
    PCIEX16_2 ∨(x8)
    PCIEX8
    ∨: Installed, ╳: Not Installed.

    When using a 16 lane CPU (4-core):
      1-Way 2-Way*
    PCIEX16_1 ∨(x8) ∨(x8)
    PCIEX16_2 ∨(x4)
    PCIEX8
    ∨: Installed, ╳: Not Installed.
    * Supports the CrossFire technology only.

  • Interface de Stockage
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
    3. 8 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory Ready
    Intel® VROC ready

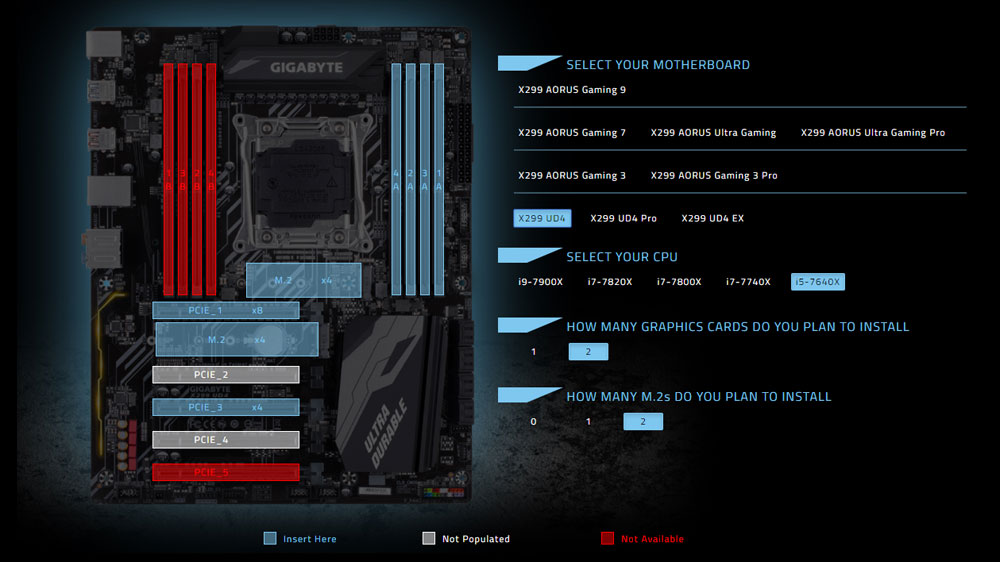

  • Technologie Multi-cartes graphiques
    1. Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies
  • USB
    Chipset+ASMedia® USB 3.1 Gen 2 Controller:
    1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    Chipset:
    1. 10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Connecteurs d'entrées/sorties internes
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 2 x system fan headers
    6. 1 x 3 Amp fan/water cooling pump header
    7. 1 x digital LED strip header
    8. 1 x digital LED strip power select jumper
    9. 2 x RGB (RGBW) LED strip extension cable headers
    10. 2 x M.2 Socket 3 connectors
    11. 8 x SATA 6Gb/s connectors
    12. 1 x Intel® VROC Upgrade Key header
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x S/PDIF Out header
    16. 2 x USB 3.1 Gen 1 headers
    17. 2 x USB 2.0/1.1 headers
    18. 1 x Thunderbolt™ add-in card connector
    19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    20. 1 x temperature sensor header
    21. 1 x Clear CMOS jumper
  • Connecteur du Panneau Arrière
    1. 1 x PS/2 keyboard/mouse port
    2. 2 x USB 3.1 Gen 2 Type-A ports (red)
    3. 6 x USB 3.1 Gen 1 ports
    4. 1 x RJ-45 port
    5. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • Contrôleur d'Entrée/Sortie
    1. iTE® I/O Controller Chip
  • Monitorage Matériel
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Fonctionnalités Exclusives
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      BIOS Setup
      Color Temperature
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Logiciels Fournis
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Système d'Exploitation
    1. Support for Windows 10 64-bit
  • Dimensions
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remarque
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
